4 High Narrow Strip Rolling Mills Reversible

Mechini e rokollang e phahameng ea GRM-S 4 e phahameng e ka khutlisoang ho tsoa femeng ea GRM Rolling Mill e etselitsoeka nepo rolling ea hlobolisa moqotetsane tlase 140 limilimithara bophara. E na le sebopeho se fetolehang, PLC, sekirini se ts'oaroang le sistimi ea taolo ea servo, leloala le nolofalletsa lisebelisoa tse ngata tsa marang-rang tse nang le botenya bo nepahetseng, botenya le boleng bo holimo. Ke tharollo e loketseng bakeng sa lits'ebetso tsa boleng bo holimo tse hlokang ho nepahala le ho feto-fetoha ha tlhahiso.

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa

GRM single stand reversing Mills e loketse bakeng sa ho roala ka nepo ha lisebelisoa tse fapaneng ho kenyeletsoa tšepe ea silicon, tšepe e sa hloekang, lisebelisoa tsa aluminium le lialloi tsa titanium. The reversible rolling mode e lumella ho feto-fetoha ha mokhoa oa ho feta ho latela thepa ea thepa le botenya ba sepheo.

E na le moralo o kopaneng le tekanyo e phahameng ea ts'ebetso ea litšenyehelo, leloala le loketse ka ho khetheha tlhahiso ea lihlopha tse nyane ho isa bohareng, lisebelisoa tsa R&D le ts'ebetso ea lintlha tse ngata.

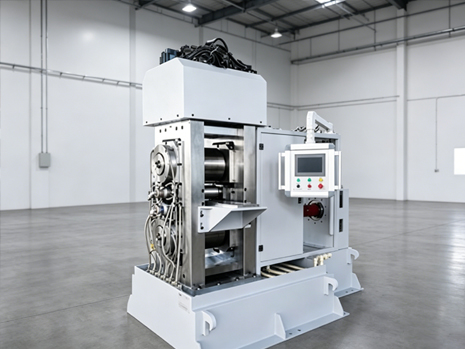

4-high narrow strip reversing mill overview

4-high reversing mill main unit with work and backup rolls

Narrow strip reversing mill for stainless steel rolling

Silicon steel narrow strip rolling on 4-high reversing mill

Aluminum alloy narrow strip reversing rolling

Lisebelisoa tse Tšebelisoang

Likotoana tsa alloy tsa silevera le silevera

Lisebelisoa tsa aluminium alloy

Li-strip tse entsoeng ka aluminium

Lisebelisoa tsa tšepe tse sa hloekang

Lithako tsa tšepe tsa silicon

Titanium alloy le likhoele tsa titanium

Tlhophiso

E 'ngoe e amohelang sethala mahlakoreng ka bobeli a ho kena le ho tsoa

4-high reversing Mill Mill unit

Lirolo tse ka holimo le tse tlase tse tsamaisoang ka boikemelo bakeng sa rolling e sa ts'oaneng

PLC + HMI + Servo sistimi e kopaneng ea taolo

Silver alloy and titanium strip rolling on narrow strip mill

Lintlha tsa Tekheniki

Mofuta oa Ema	4-High Single Stand Reversing Mill
Botenya ba Kenyeletso	0.5 - 10 limilimithara
Botenya ba Tlhahiso	0.2 - 0.8 limilimithara
Bophara ba ho hlobola	100 - 140 limilimithara
Botenya Mamello	± 0.015 limilimithara
Bearing Lubrication	Lubrication ea oli e iketsang ea potoloho e koetsoeng
Backup Roll Diameter	Φ300 × 200 limilimithara
Mosebetsi oa Roll Diameter	Φ120 × 200 limilimithara
Lebelo la Moqapi	0 - 0.4 m/s
Rolling Force	≥ 80 T

Melemo

Moralo o Reversible Rolling

Taolo ea phasa e feto-fetohang bakeng sa lisebelisoa tse fapaneng le mefuta ea botenya.

Taolo e nepahetseng e phahameng

Mehala e 4 e phahameng e meqotetsane e khutlisetsoang morao e na le servo drive e felletseng le sistimi ea taolo ea PLC, e fihlelang botenya bo nepahetseng ho fihla ho ± 0.015 mm.

Moqapi oa Compact Mill Stand

Mohaho o le mong oa setulo se nang le maoto a manyenyane, se loketseng tlhahiso ea lihlopha tse nyenyane le tse mahareng tse nang le litlhaloso tse ngata tsa lihlahisoa.

Dikgetho

Sistimi ea ho futhumatsa ka meqolo ea motlakase (150-250°C)

E nolofalletsa ho chencha lipakeng tsa ho bilika ho batang le mefuta e futhumetseng ea ho bilika.

4-phahameng ho 2-phahameng phetoho sebopeho

E boloketsoe katoloso ea ts'ebetso ea nako e tlang le lits'ebetso tse futhumatsang.

LBH

Q1: Bophara bo boholo ba strip ke bofe?

GRM: The boholo hlobolisa bophara bophara ke 140 limilimithara, etselitsoe bakeng sa ho nepahala moqotetsane moqotetsa rolling dikopo.

Q2: Na leloala le ka sebetsa tšepe e sa hloekang le tšepe ea silicon?

GRM: Ho joalo. Litsila tsa rona tse 4 tse phahameng tse tšesaane tse fetolehang li loketse ka ho khetheha lisebelisoa tse thata ho roala joalo ka tšepe e sa hloekang le silicon.

Q3: Na leloala le ka sebetsa ka lithapo tsa anneal kapa pickling?

GRM: Ho joalo. GRM e ka fana ka litharollo tse kopaneng tse kenyelletsang likhoele, litsamaiso tsa pickling le lisebelisoa tsa ho sebetsana le likhoele.

GRM e sebetsa ka mokhoa o nepahetseng ka mokhoa o nepahetseng oa tharollo e tšesaane, e fanang ka lisebelisoa tse nepahetseng haholo, tse tšepahalang le tse sebetsang hantle ka litšenyehelo. Ho phaella ho litsila tse fetolang setulo se le seng, re boetse re fana ka liloala tse nang le li-multi-stand rolling mill, li-roll tse tsoelang pele le lisebelisoa tse hlophisitsoeng tsa tšepe.
Ikopanye le rona kajeno bakeng sa tharollo e lokiselitsoeng bakeng sa litlhoko tsa hau tsa thepa le tlhahiso.
