Mokhoa o Kopanetsoeng oa ho Drawing le Rolling Line bakeng sa Precision Copper Flat Wire

GRM's Integrated Drawing and Rolling Line bakeng sa Precision Copper Flat Wire ke tharollo e ikhethileng ea koporo ea terata e bataletseng e kopanyang ho taka terata, ho roala ka mokhoa o nepahetseng, ho lekanya marang-rang, le ho inkela ka boiketsetso ts'ebetsong e le 'ngoe e tsoelang pele. E etselitsoe li-conductor tsa li-transformer, tlhahiso ea li-conductor tsa CTC, terata e nang le li-rectangular enameled, le tlhahiso ea terata e bataletseng ea EV, mohala o fihlella ka lebelo ho fihla ho 400 m / min. Sistimi ena e kopaneng e ntlafatsa ts'ebetso le ho fokotsa ts'ebetso ea lisebelisoa.

Romela Lipatlisiso

Lintlha: 5.0

(Palo ea Lintlha: 1)

Tlhaloso ea Sehlahisoa

Setšoantšo se kopantseng sa GRM le mohala o kopanyang o kopanya terata, ho roala ka nepo, tekanyo ea inthanete le ho inkela ka mokhoa o iketsang ts'ebetsong e le 'ngoe e tsoelang pele ea tlhahiso. Sistimi e etselitsoe ho etsa terata e bataletseng ea koporo e nepahetseng haholo e sebelisoang ho terata ea makenete, conductor ea transformer, conductor ea CTC le lits'ebetso tsa motor tsa EV.

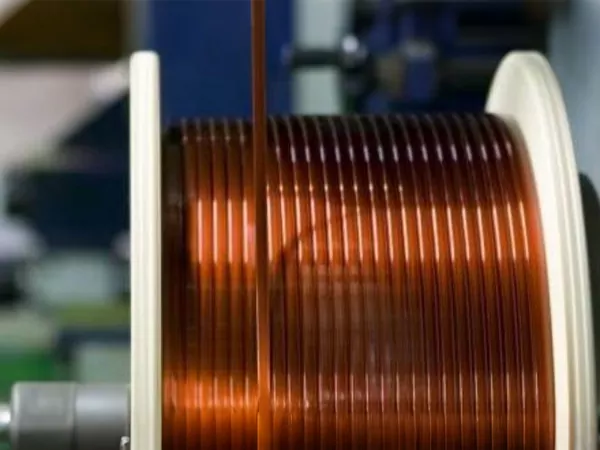

Precision copper flat wire produced on GRM integrated drawing and rolling line

Mohala oa tlhahiso ea terata e kopaneng ea GRM e etselitsoe ho tsoela peleho sebetsa ha terata ea koporo hore e be li-conductors tse bataletseng tse nepahetsenge nang le mamello e tiileng ea dimensional le boleng bo botle ba bokaholimo.

Ka ho kopanya lits'ebetso tsa ho taka le ho roala ka har'a sistimi e le 'ngoe ea tlhahiso, mohala o ntlafatsa haholo katleho ea tlhahiso ha o ntse o fokotsa ts'ebetso ea matsoho le ho boloka botsitso ba sehlahisoa ho pholletsa le nako e telele ea tlhahiso.

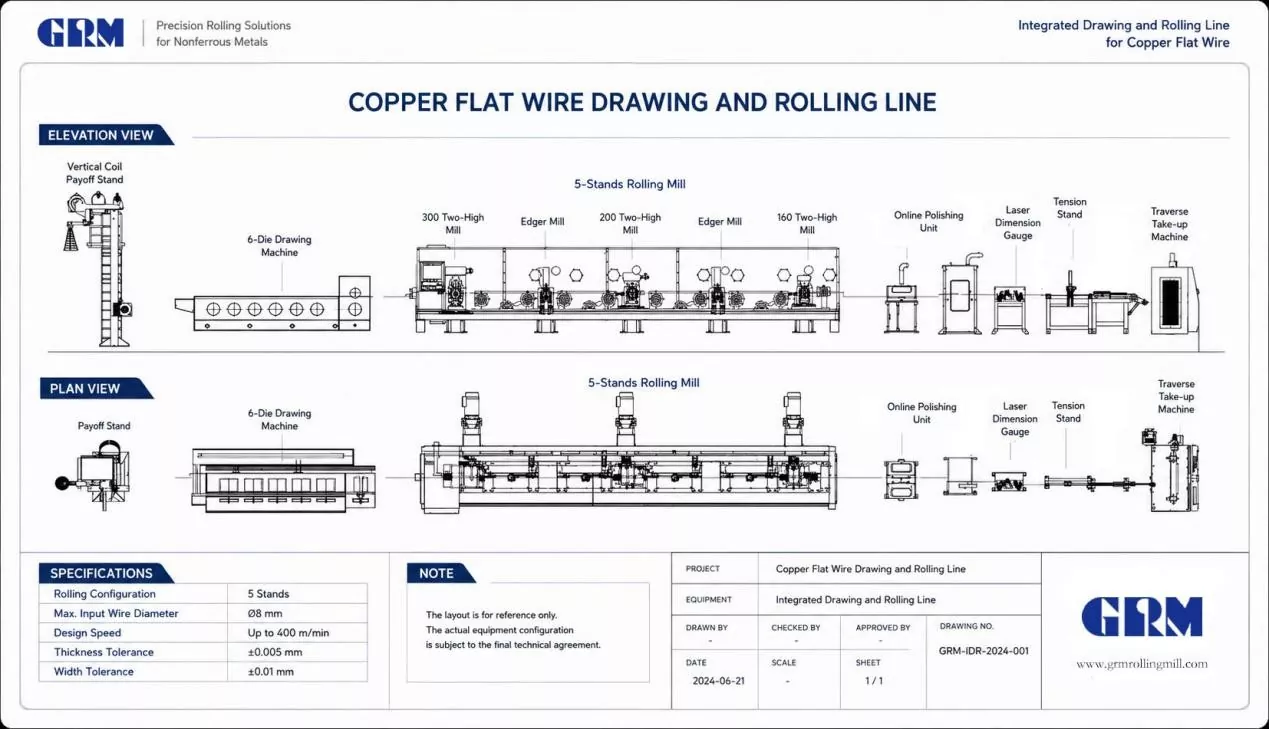

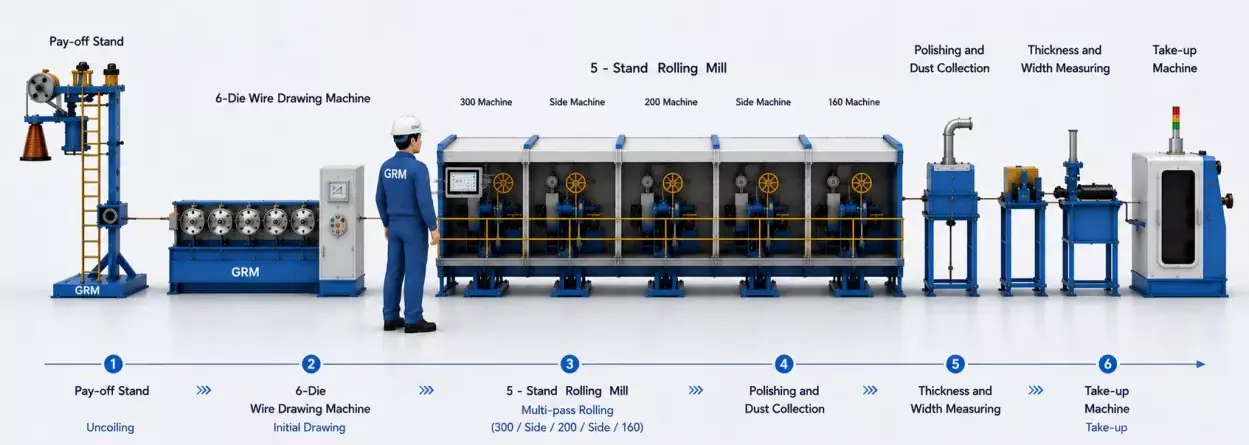

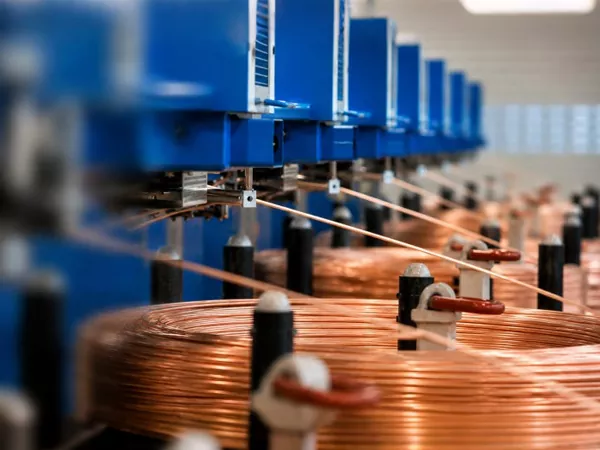

Integrated copper flat wire drawing and rolling line production process

Moralo o feto-fetohang le o sebetsang hantle

Tefo ea Tefo ea Coil: 1 seteeeee

DLF6D/500 Mochini oa ho taka o tšeletseng oa shoa: 1 seteeeee

Rolling Mill tse peli tse nepahetseng: 3 lihlopha

Side Rolling Mill: 2 lihlopha

Sesebelisoa sa ho Pholisetsa Lerōle Inthaneteng: 1 seteeeee

Sesebelisoa sa ho Metha Botenya le Bophara ba Marang-rang: 1 seteeeee

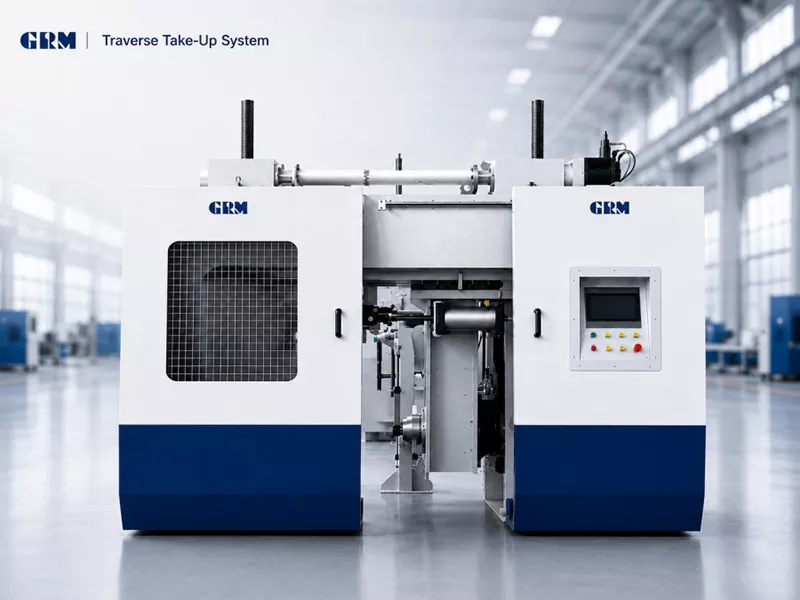

Mochini oa Transverse Take up: 1 seteeeee

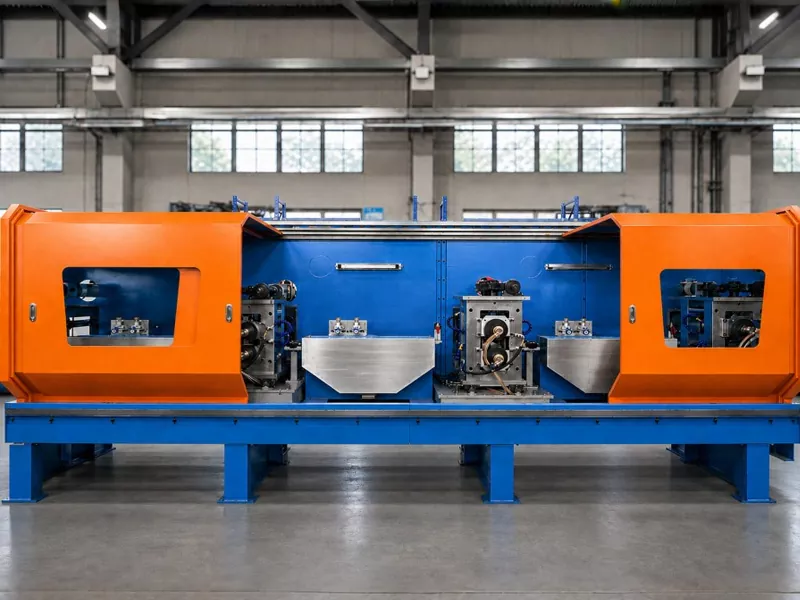

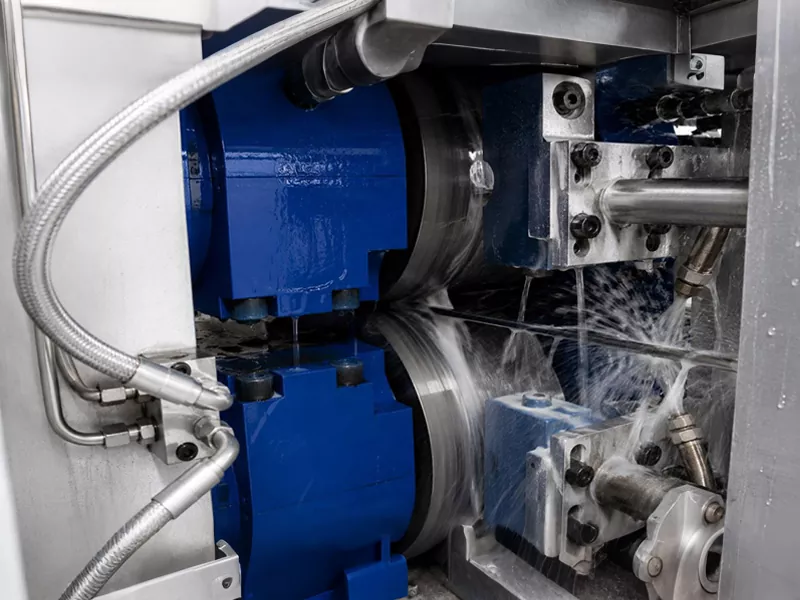

Two-roll precision rolling mill on copper flat wire production line

Side rolling mill for copper flat wire width control

Online thickness and width measuring device for copper flat wire

Mohala o felletseng oa tlhahiso ea Copper Wire

The Integrated Drawing and Rolling Line bakeng sa Precision Copper Flat Wire e etselitsoe ho batla ho nepahala ha boemo bo holimo tlhahisong ea conductor ea motlakase. Ka lebelo le phahameng la 400 m / min, e loketse hantle bakeng sa tlhahiso e kholo e tsoelang pele ea terata e sephara ea koporo.

Ha ho bapisoa le mekhoa e tloaelehileng ea ho roala li-standalone, mohala o kopantsoeng o felisa ho sebetsana le lisebelisoa tse mahareng le ho netefatsa hore ho na le ts'ebetso e phahameng ka ho fetisisa nakong eohle ea tlhahiso.

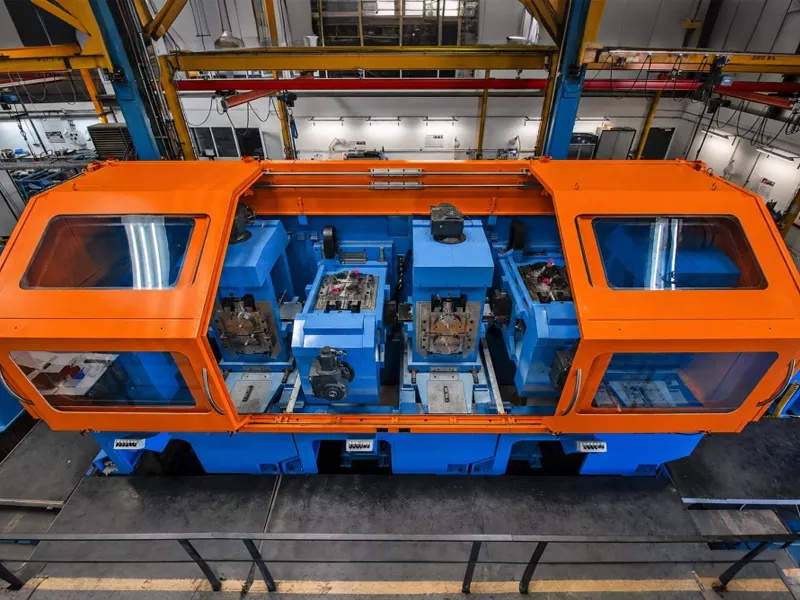

GRM integrated copper flat wire production line with 5-stand rolling mill

* Ts'ebetso ea Line ea Tlhahiso e ka etsoa ka mokhoa o ikhethileng ho latela boholo ba sehlahisoa sa bareki

LIEKETSENG MOKHOPO

Configuration 5-stands Rolling Mill		GRM
Leloala la pele la tse peli tse phahameng	Ø mm	300
Pele Edger mil	Ø mm	155
Leloala la Bobeli le phahameng	Ø mm	200
Ea bobeli Edger mil	Ø mm	155
Leloala la Boraro la bophahamo ba 'meli	Ø mm	160
Lebelo la Moqapi	m/m	400
Boholo ba Intel Wire	Ø mm	8
Ho qeta mamello	mm	botenya: ± 0.005 bophara: ± 0.01
Tloaelehileng Finished Flat boholo ba boholo ba terata	mm	botenya: 2.0-12 bophara: 0.5-4.0

Lisebelisoa tse Tloaelehileng

Enameled Rectangular Magnet Wire

CTC Conductor e Fetotsoeng e Tsoelang Pele

EV Motor Hairpin Conductor

Tlhahiso ea EV Motor Flat Wire

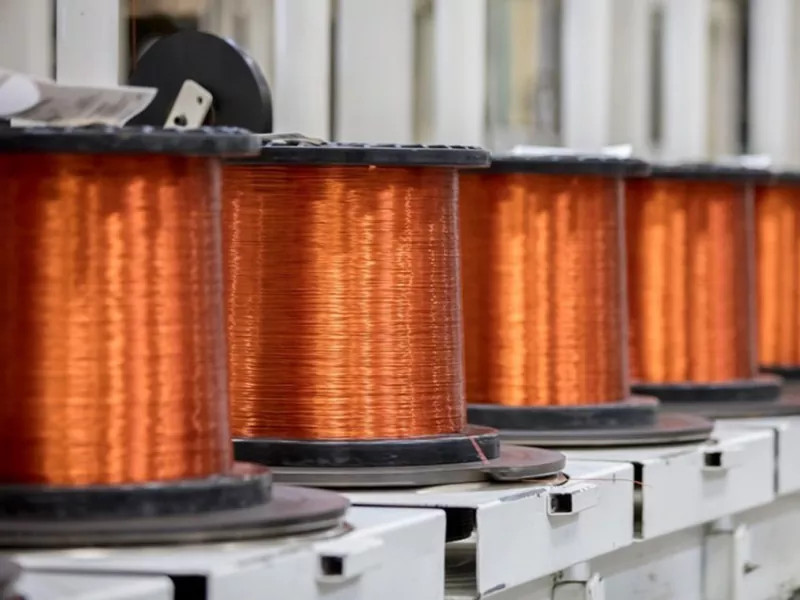

Enameled rectangular magnet wire produced on GRM line

CTC continuously transposed conductor production

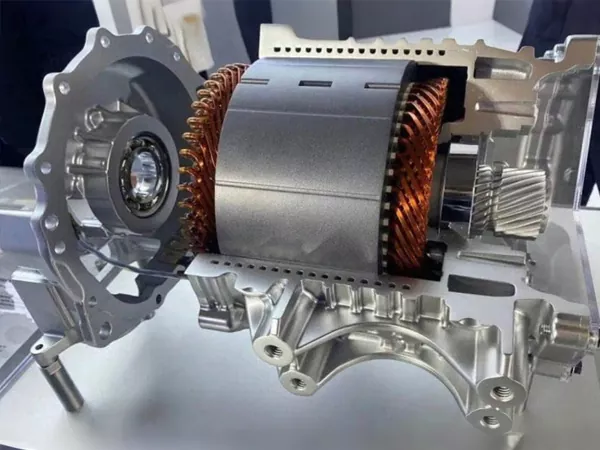

EV motor hairpin conductor flat wire production

LBH

1. Na mohala ona oa tlhahiso o ka etsa terata e bataletseng ea koporo bakeng sa lisebelisoa tsa transformer?

E, mohala o etselitsoe ho hlahisa terata e bataletseng ea koporo ea boleng bo holimo bakeng sa li-conductors tsa transformer, terata ea makenete le lisebelisoa tse ling tsa motlakase.

2. Na Mohala o Kopanetsoeng oa Drawing le Rolling oa Precision Copper Flat Wire o ka etsoa ka mokhoa o ikhethileng?

Ee, GRM e fana ka litharollo tsa mela ea tlhahiso e ikhethileng e ipapisitseng le thepa ea hau ea ho kenya, boholo ba terata e felileng le litlhoko tsa tlhahiso.

3. Ke ho nepahala hofe ho ka finyellang mokhoa o nepahetseng oa ho roala?

Sistimi e ka fihlela mamello ea botenya ho fihla ho ± 0.005 mm le mamello ea bophara ho fihla ho ± 0.01 mm bakeng sa tlhahiso e nepahetseng ea terata e bataletseng ea koporo.

4. Ke hobane'ng ha u khetha mochine o kopantsoeng oa ho taka le ho roala ho e-na le mechine e arohaneng?

Mohala o kopantsoeng oa koporo o bataletseng oa tlhahiso ea terata o ntlafatsa ts'ebetso, o fokotsa ts'ebetso ea thepa le ho netefatsa hore sehlahisoa se tsitsitse haholoanyane.

U batla Tharollo ea Tlhahiso ea Copper Flat Wire e Customized?

GRM e fana ka litharollo tse felletseng tsa boenjiniere tse ipapisitseng le lintlha tsa hau tsa thepa, litekanyo tsa terata tse felileng le litlhoko tsa kopo e tlase.

Ikopanye le sehlopha sa rona sa boenjiniere bakeng sa therisano ea tekheniki le moralo o hlophisitsoeng oa mohala oa tlhahiso.
