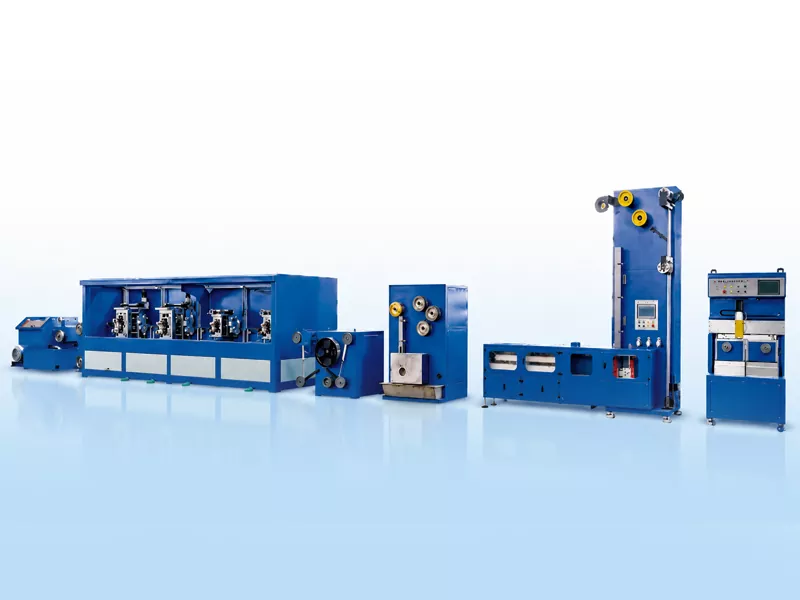

PV Busbar Ribbon Production Line

GRM PV Busbar Ribbon Production Line e etselitsoe ho tsoela pele ho sebetsana le terata e chitja ea koporo e se nang oksijene ea TU1 hore e be ribone e phahameng ea tin-coated flat conductive. Mohala o loketse lente la khokahano ea PV, lente la busbar, le tlhahiso ea lente e bonahatsang.
Mohala o felletseng o kopanya ho taka terata, ho roala ka nepo, ho ts'oaroa ho sa khaotseng, kalafo ea flux, ho roala tin e chesang, le ho inkela ka boiketsetso. E thusa baetsi ba liribone tsa PV ho laola bophara le botenya bo nepahetseng, boleng ba ho roala thini, ho otloloha ha hlobo, le ho tsitsisa ha mapheo.
Mohala oa tlhahiso ea liribone tsa GRM busbar o ka ba bolelele ba 26 m le bophara ba 3 m, ka boima ba mohala oa lithane tse ka bang 14. Lebelo la moralo le ka fihla ho 150 m/min, ho latela boholo ba terata ea koporo, litekanyo tsa ribone tse felileng, lebelo la ho tinning, le mokhoa oa ho nka. Tlas'a maemo a tloaelehileng a tlhahiso, tlhahiso ea khoeli le khoeli e ka fihla lithane tse ka bang 60-80.

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa

Ho tloha Copper Wire ho Finished Busbar Ribbon

PV Busbar Ribbon Production Line haholo-holo e sebelisa terata ea koporo e le thepa e tala. terata e qala ka ho huleloa ho bophara bo hlokahalang bakeng sa ho bilika, ebe e etsoa hore e be ribone e bataletseng ka ho pitika ka mokhoa o nepahetseng oa li-multi-stand. Ka mor'a ho bilika, khoele ea koporo e feta ka har'a annealing e sa khaotseng ho lokisa thepa ea eona ea mochine, e lateloa ke phekolo ea flux le ho roala thini e chesang. Qetellong, ribone e phethiloeng e tšeloa ke sistimi ea othomathike ea ho inkela holim'a li-spools kapa likhoele tsa pancake.

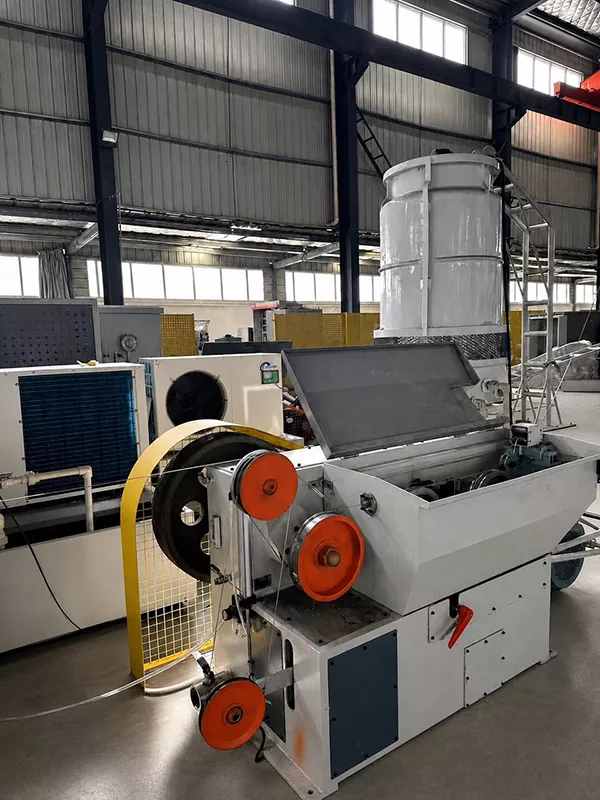

Mochini oa ho taka

Mohala oa koporo o huloa ka ho shoa ho isa bophara ba 2.6-3.0 mm, o loketse ho phuthoa.

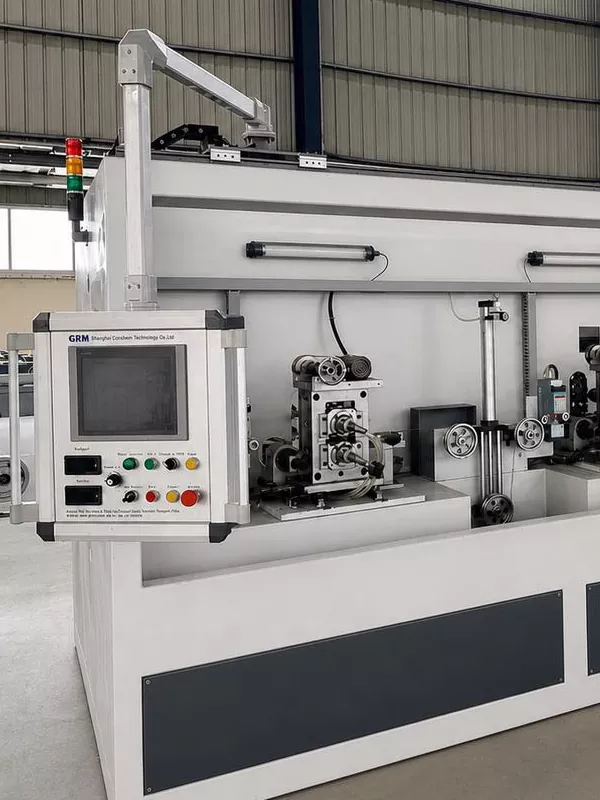

4 Roll Stand

Mohala o chitja oa koporo o kenngoe ka lenteng le bataletseng, ka bophara bo laoloang le botenya bo nepahetseng.

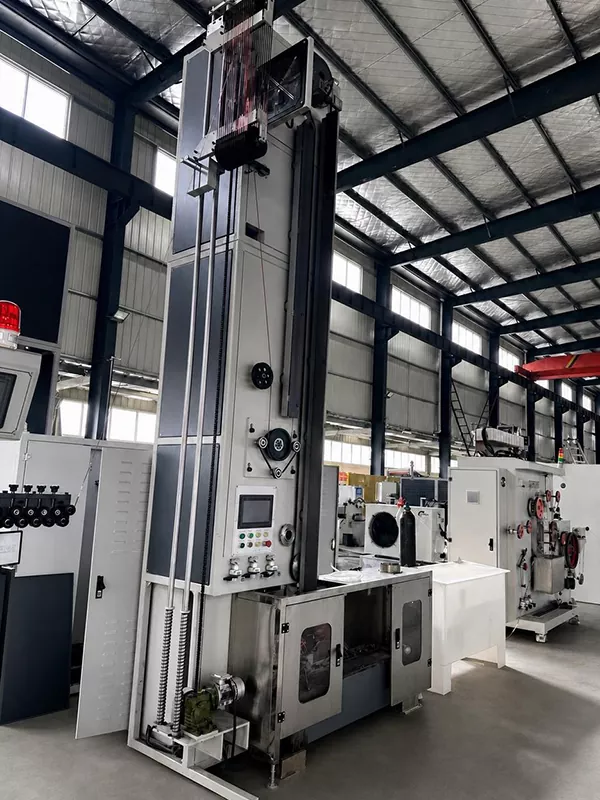

Annealing

Mohaho o mokhuts'oane o sebelisoa ka ts'ireletso ea khase e sa sebetseng le pholiso ea metsi a potolohang ho ntlafatsa thepa ea mochini oa ribone ea koporo.

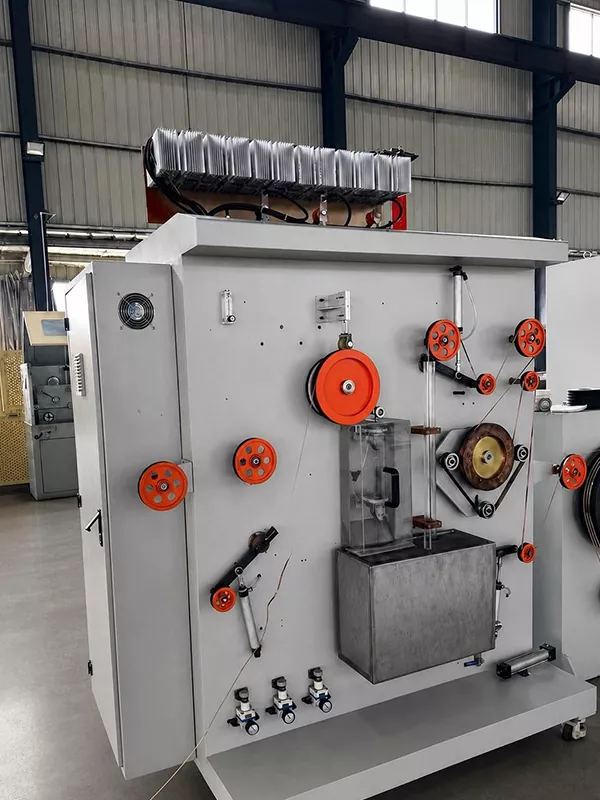

Ho roala tin

Ho sebelisoa ho roala thini e chesang-dip. Lithipa tsa moea li laola botenya ba lesela la thini, 'me lifenehi tse pholisang li thusa ho tsitsisa boleng ba bokaholimo. Botenya ba lesela le le leng: 0.01-0.025 mm.

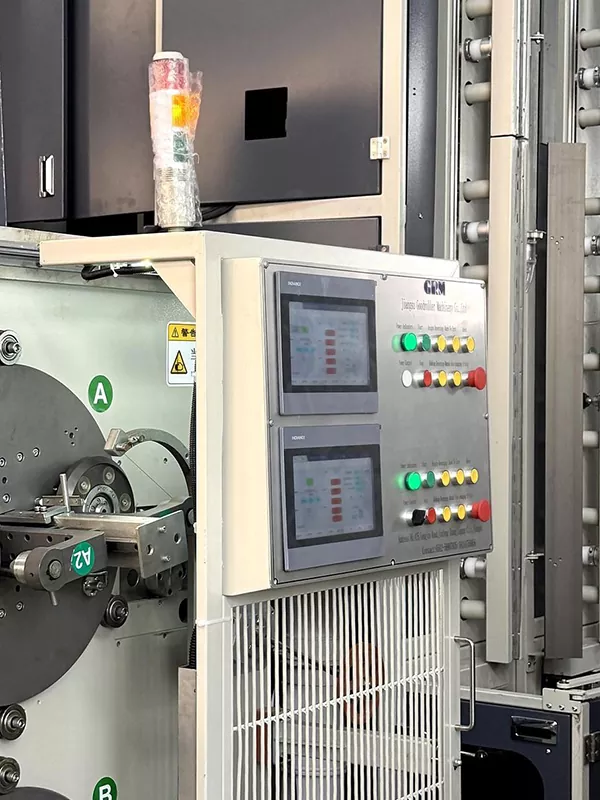

Coil Chang e iketsang

Mesebetsi ea boikhethelo e kenyelletsa ho tšela servo, phetoho ea spool ka boiketsetso, ho itšeha ka boiketsetso, le ho theipi ka boiketsetso.

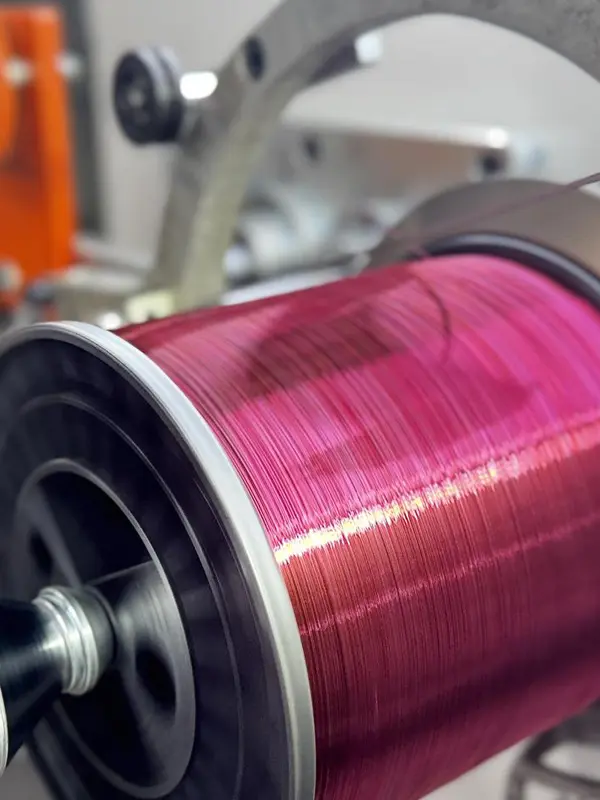

Ho nka ka nepo

Spool winding: ho fihlela ho 30 kg.

Pancake coil windings: boikhethelo 1-2 lik'hilograma.

R&D le Patents

Ho tloha ka 2015, GRM e tsoetse pele ho nts'etsapele lisebelisoa tsa tlhahiso bakeng sa ribone ea khokahano ea PV le lente la libese. Khamphani e fumane litokelo tse ngata tsa tekheniki tse amanang le ho roala ka nepo, ho kopanya mohala oa tlhahiso, le lits'ebetso tsa tlhahiso ea ribone ea PV.

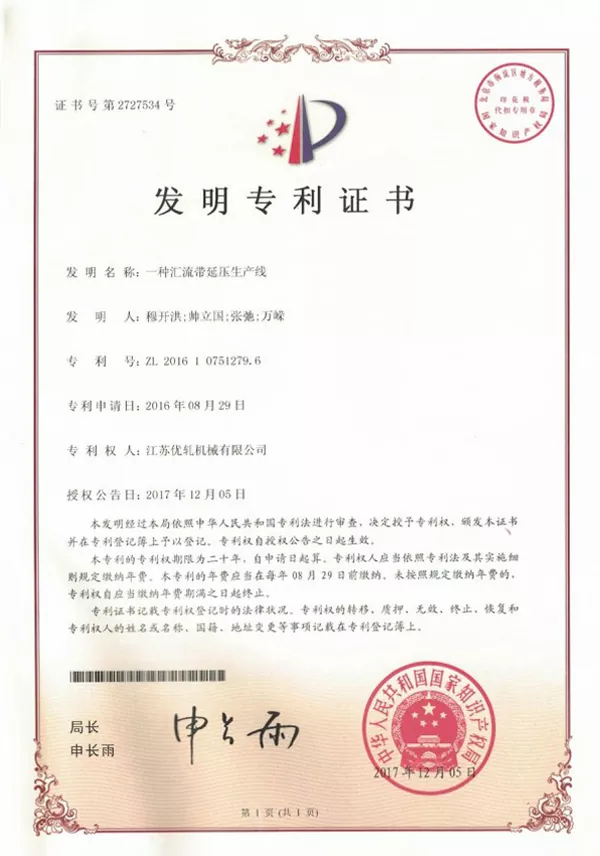

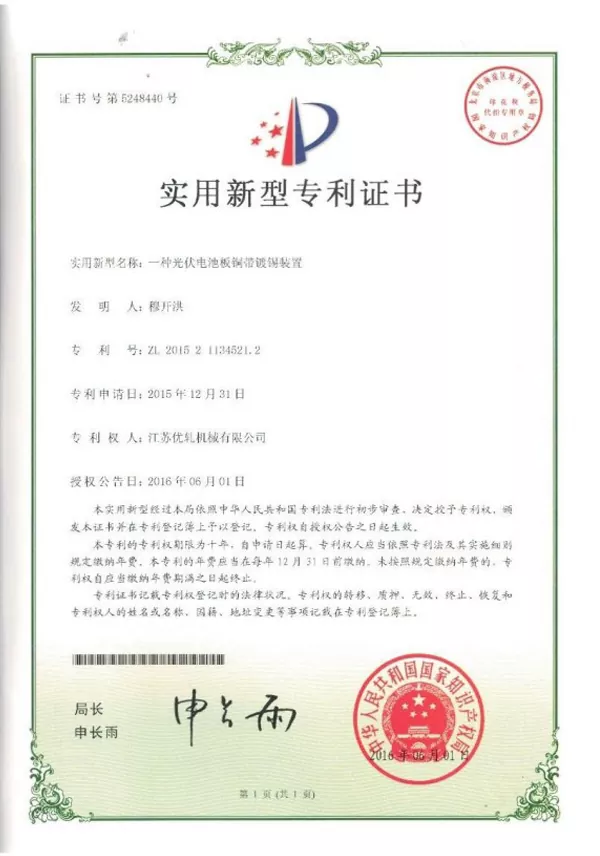

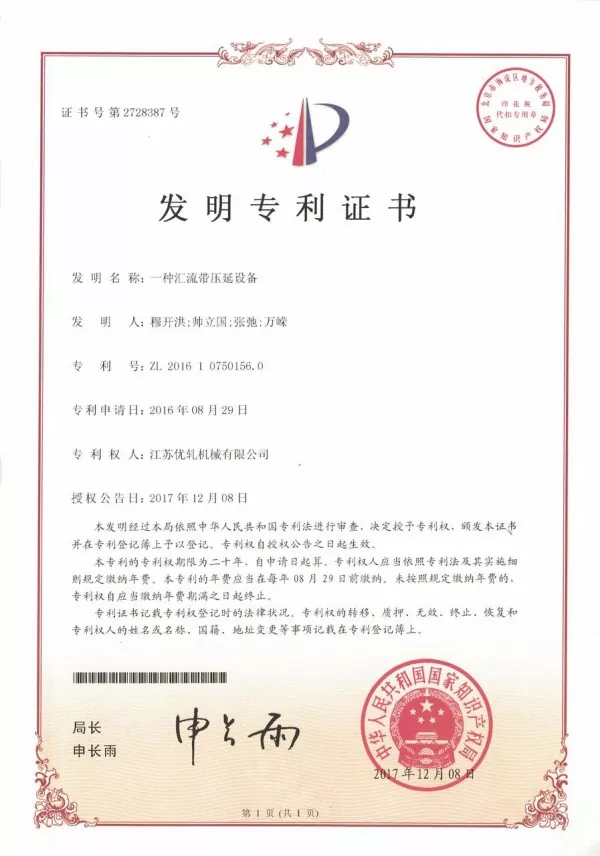

GRM Patented Technologies for PV Ribbon Manufacturing Equipment

Likarolo tsa Bohlokoa

Tlhahiso e tsoelang pele ho tloha ho terata ea koporo ho ea ho tlhahiso e phethiloeng ea lente la busbar e koahetsoeng ka tin.
E ntlafalitse ho lumellana ha li-dimensional, ho ts'oara ha moaparo, le boleng ba matsoeli.
Khokahano ea tsitsipano le ho ithaopela ho thusa ho fokotsa litšitiso tsa tlhahiso le ho kenella ka letsoho.
E ts'ehetsa ka bobeli ribone e tloaelehileng ea busbar le tlhahiso ea li-busbar e bonts'ang bakeng sa litlhoko tse fapaneng tsa lisebelisoa tsa PV.
E fana ka baetsi ba ribone ba PV ka tharollo e kopaneng ea tlhahiso e shebaneng le taolo ea ts'ebetso, botsitso ba sehlahisoa, le katleho ea tlhahiso.

Lipotso Tse Botsoang Hangata

1.Lethathamo la boholo ba sehlahisoa se felile ke bokae?

E felile bophara: 3-8 mm.

Botenya bo felileng: 0.2-0.4 mm.

2.Mekhahlelo ea thepa ea mamello le ea mochini ke efe?

Boima ba bophara: ± 0.085 limilimithara.

Mamello ea botenya: ± 0.01 limilimithara.

Matla a tsitsitseng: ≥260 MPa.

Matla a tlhahiso: 90-130 MPa.

3.Ho sebelisoa mokhoa ofe oa ho roala ka thini?

Mohala o sebelisa lesela le chesang, le koahetsoeng ka botlalo ho pota lente, ho kenyeletsoa mahlakore ka bobeli.

4.Bophara ba sehlahisoa le botenya bo lekantsoe joang?

Setopo sa bone sa leloala le bilikang la litepisi tse 'nè se na le lisebelisoa tse peli tsa ho metha ka laser, e 'ngoe ke ea ho metha bophara le e 'ngoe bakeng sa ho metha botenya. Lintlha tsa tekanyo li ka hlahisoa ho HMI.

5.Ke lisebelisoa life tse ka sebetsoang?

The PV Busbar Ribbon Production Line e etselitsoe haholo-holo terata ea koporo e se nang oksijene ea TU1. Litlhophiso tse ikhethileng li ka fanoa ho latela li-alloys tse fapaneng tsa koporo, boholo ba sehlahisoa le litlhoko tse khethehileng tsa ribone.
